my masterpiece during Diploma in Landscape Architecture 2007-2010 (PART 5)

1 sudah, 2 sudah, 3 sudah, 4 pun sudah.
sekarang aku nk share lak artwork aku time part 5 plak..(bangkit dari zaman kegelapan)
hahahaah

time part 5 ni, aku study pasal housing & community design...
design idea for housing development area la
design kene ikut akta perumahan segale~
cam biase, aku share project 1 dan final project aku


ni first project: PROPOSEDHOUSING AND COMMUNITY DESIGN AT PUNCAK ISKANDAR, BANDAR SERI ISKANDAR, PERAK DARUL RIDZUAN


theme: CENTRALIZED COMMUNITY

concept: GREEN OASIS


conceptual development

master plan & perspectives

enlargement plan

section elevations & perspectives


lecturers said: the concept is good, support the theme..design best! tp still x cukup lagi



ok now, final project lak...
ade 2 site, so lecturer bg studio kpd 2 la, ade yg dpat site d'residence bayan mutiara dan ade yg dpt dedaun. so aku dpat bayan mutiara.
site best, tepi laut...


ni final project: PROPOSED HOUSING & COMMUNITY DESIGN AT D'RESIDENCE, BAYAN MUTIARA, PULAU PINANG.


theme: THE ELITE RESIDENCY THROUGH THE SEA
concept: VILLAS SEA VISTA

conceptual development

master plan & type of houses

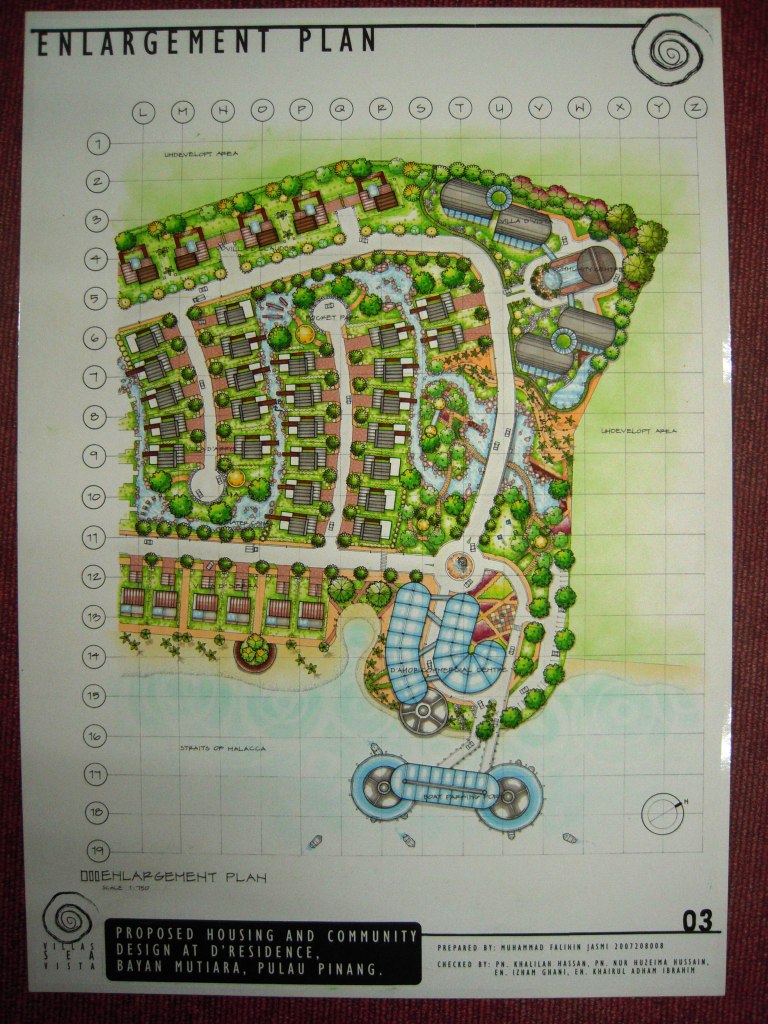

enlargement plan

section elevation & perspectives

section elevation & perspectives


lecturers said: really impressed. the best design of the studios. but need to concern the safety design...overall good job!


p/s : best part 5 ni...enjoy wat housing...setelah berhempas pulas, syukur, 4 flat kembali dalam genggaman gue!!!
